Contact Safetyflex Oneline Security Fence
Gallery & Videos
Applications

Safetyflex ONEline Security Fencing is ideal for:

  • High Security Sites
  • Power Stations
  • Airports
  • Critical Infrastructure
  • Transport
  • Sports Stadiums
Why Safetyflex

Safetyflex solutions include:

  • Flexibility to design to your requirements
  • Manufacture of bespoke and one off products
  • On-site management and installation
  • Street furniture available on PAS rated spring bollards
  • High security fencing available on PAS 68:2010
  • Car Park Spring barriers tested to BS6399 and BS1680
Oneline Springline 30/50

ONEline Anti-Terrorist Security Fencing from Safetyflex

Safetyflex barriers and fencing have developed the world's first PAS68 Fencing System that is designed into one system.

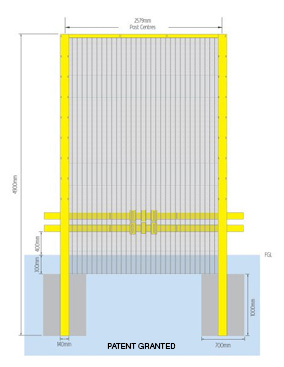

ONEline Security Fencing

The ONEline Defence System is designed to stop vehicle attacks. The system incorporates Safetyflex Barriers, which have been tested to PAS 68:2010. A security fence is then attached to it resulting in a hostile vehicle mitigation fence built into one system and tested at TRL testing ground Berkshire UK to PAS 68:2010.

One of the major benefits of the system is that you only need one concrete footing to install the security fencing giving you a one line of defence system.

Other benefits include:

  • All in one foundation line
  • Simple and cost effective installation
  • Modular system allows for simple and cost effective replacement parts

The worlds first PAS68 Barrier System with integral security fence...

PAS68 Vehicle Performance Classification

ONEline Security Fencing (BSI PAS68:2010) V/2500/N1G/48/90/0.00/0.00
Vehice Test Weight Vehicle Class Vehicle Speed kph Vehicle Angle o Vehicle Penetration m 25KG+ Dispersion m Footing Depth mm
V/2500 KG N1G 48 90 0.00 0.00 400

This Publicly Available Specification (PAS) has been prepared to address the needs of organizations who want assurance that vehicle security barriers will provide the level of impact resistance they are aiming for.

PAS68 identifies impact test methods, tolerances, test vehicle type and vehicle performance criteria that need to be met in order to conform to PAS68. It cites a classification system for the performance of vehicle security barriers and their supporting foundations when subjected to a single horizontal impact.
