Applications

The Safetyflex Truckstopper 4 is ideal for:

  • Airports
  • High Security Sites
  • Cash Centres
  • Critical Infrastructure
  • Perimeter Security HVM
  • Utilities
  • Military Sites
  • Cash Mashine/ATM Protection
Why Safetyflex

Safetyflex solutions include:

  • Flexibility to design to your requirements
  • Manufacture of bespoke and one off products
  • On-site management and installation
  • Street furniture available on PAS rated spring bollards
  • High security fencing available on PAS 68:2010
  • Car Park Spring barriers tested to BS6399 and BS1680

Anti-Terrorist High Security Spring Bollard Systems

The new low-cost Truckstopper 4 is the ideal solution for perimeter fencing or stand alone bollards. As with Truckstopper 1,2 and 3 the Truckstopper 4. It is designed to meet the threat of anti terrorist attacks and can be assembled easily and quickly.

Truckstopper 4

The post foundations are only 400mm deep and 1m wide. They are designed to rival existing add on like perimeter fences or street furniture design for quick fitting with U/Bolts.

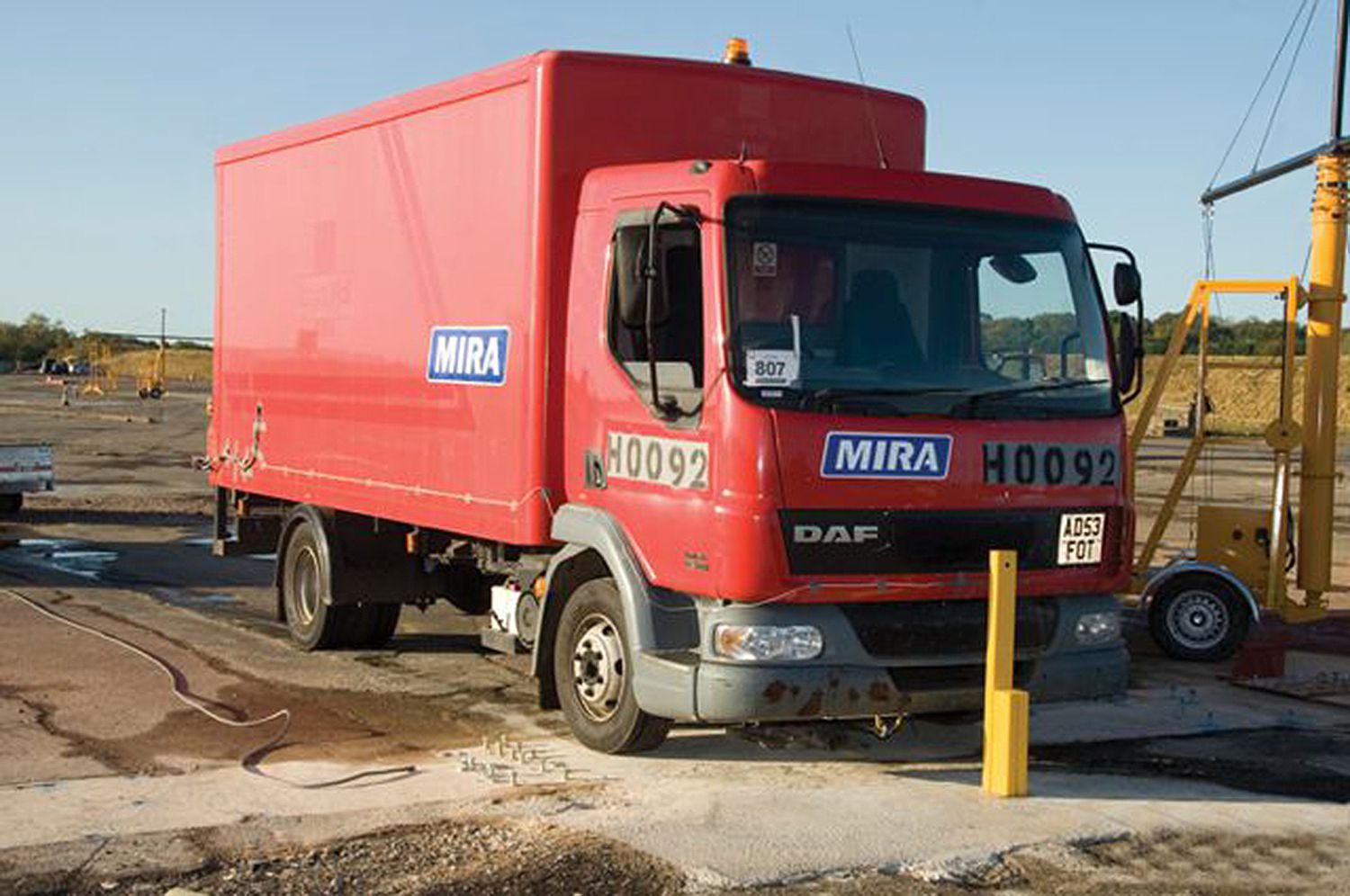

Successfully tested at MIRA to BSI PAS68:2007 with a 7.5 tonne truck at 40mph (64kph) it too can follow the contour of the ground and follows corners And again once fitted it needs no ongoing adjustment or tensioning of the barrier and the steel is good for 20 year wear, with the only need for re-painting or it can be fitted with mild or stainless steel shrouds.

Only requires a footing of 400mm...

PAS68 Vehicle Performance Classification

TRUCKSTOPPER 4 (BSI PAS68:2007) V/7500/N2/64/90/10.30/4.00
Vehice Test Weight Vehicle Class Vehicle Speed kph Vehicle Angle o Vehicle Penetration m 25KG+ Dispersion m Footing Depth mm
V/7500 KG N2 64 90 10.30 4.00 400

This Publicly Available Specification (PAS) has been prepared to address the needs of organizations who want assurance that vehicle security barriers will provide the level of impact resistance they are aiming for.

PAS68 identifies impact test methods, tolerances, test vehicle type and vehicle performance criteria that need to be met in order to conform to PAS68. It cites a classification system for the performance of vehicle security barriers and their supporting foundations when subjected to a single horizontal impact.

Want to find out more?

If you wish to find out more about the Truckstopper 4 then please complete our enquiry form, alternatively you can call us at +44 (0) 2476 662116 or email us on
